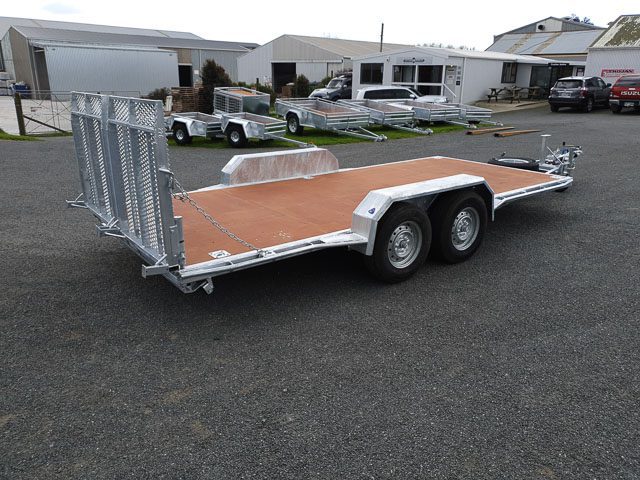

3500kg GVM Transporter
The 3500kg GVM Transporter Trailer is ideal for tractors and orchard equipment, with a 2600kg load capacity and tandem axle with oscillating suspension for smooth towing. It features a fully galvanised chassis, 14” wheels with commercial tyres, a strong 32mm plywood deck, and Hygo over-ride hydraulic brakes on both axles. With a low deck height, rear ramps, tie hooks, and rear rollers, loading is easy and safe. Available in closed front or open deck styles, and we can customise sizes to suit your needs.
- Tandem axle and oscillating load-sharing suspension
- Fully galvanised chassis for long-lasting durability
- 14” wheels with 195R 8ply commercial tyres and a spare mounted on the drawbar
- Transporter-style framed front area with open rear and four side tie hooks
- 32mm H3 plywood deck for heavy-duty use
- Underslung and dropped axles to keep trailer height low
- LED multi-volt lights (12/24V)
- Heavy-duty NZ jockey wheel with alloy centre
- Hygo over-ride hydraulic brakes on both axles (no electrics or remote required)
- Duo-fit coupling and heavy-duty tilting drawbar
- Two rear ramps (1000mm high, steel mesh, spring-loaded pins)
- Tie hooks on the drawbar and rear rollers for driveways
- Available in both closed front and full open deck styles
Additional information
| Size | Deck size: 4.8m x 2m, Custom Size |
|---|---|
| Load | 2600kg |
| GVM | 3500 |
