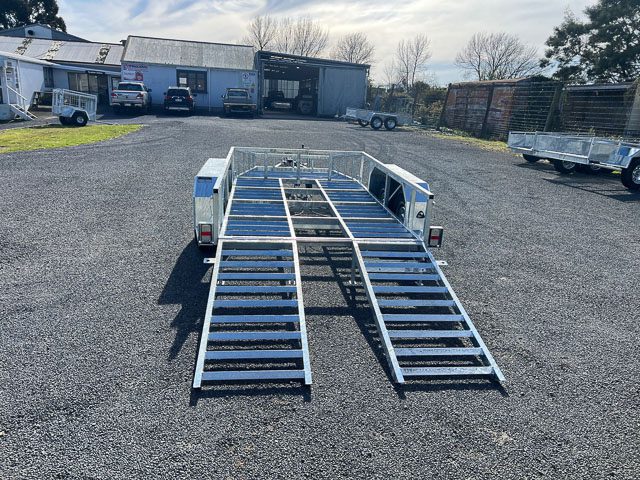

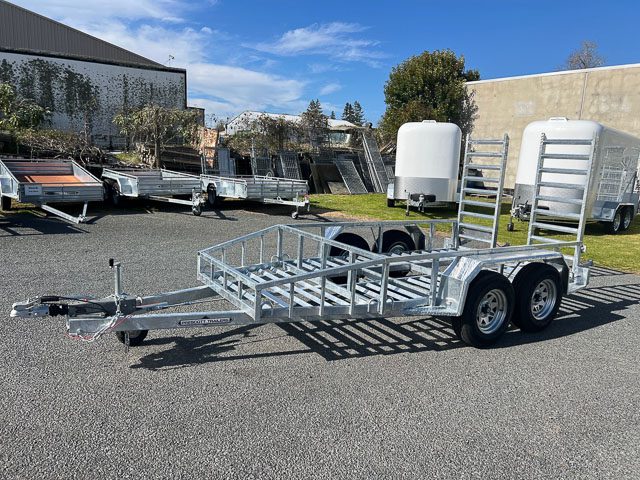

Digger Trailer
The Digger Trailer is built tough for transporting your machinery with ease. It features a tandem axle with 1750kg stub axles, Trojan hydraulic over-ride disc brakes on the front axle, and 14” 8 ply tyres for reliable towing. The deck and 1500mm ramps come standard in 40/40 angle steel, or you can choose a full 22mm plywood deck at the same price. It includes a forward bucket rest, chain and bucket storage box, heavy-duty jockey wheel, and LED multi-volt lights, all on a fully galvanised chassis. We also offer a range of extras to upgrade your trailer, including Patriot brakes with twin piston callipers and vented rotors, uni-hub options (when fitted with Patriots), and a 14” spare wheel. Custom sizes are available to suit your specific digger transport needs.
- Tandem axle with 1750kg stub axles
- GVM: 2500kg / Approx tare: 500kg
- 14” 8 ply tyres
- Trojan hydraulic over-ride disc brakes (front axle)
- 1500mm long ramps
- 40/40 angle deck and ramps (or optional 22mm ply deck at same price)
- Forward bucket rest
- Chain and bucket storage box
- Fully galvanised chassis
- Heavy-duty jockey wheel
- LED 12/24V multi-volt lights
- Extras available:
– Upgrade to Patriot brakes with twin piston callipers and vented rotors
– Uni-hub upgrade (when fitted with Patriots)
– 14” spare wheel - Custom sizes and setups available
Additional information
| Deck Size: | 2.6m x 1.45m, Custom Size |
|---|---|
| GVM | 2500kg |
