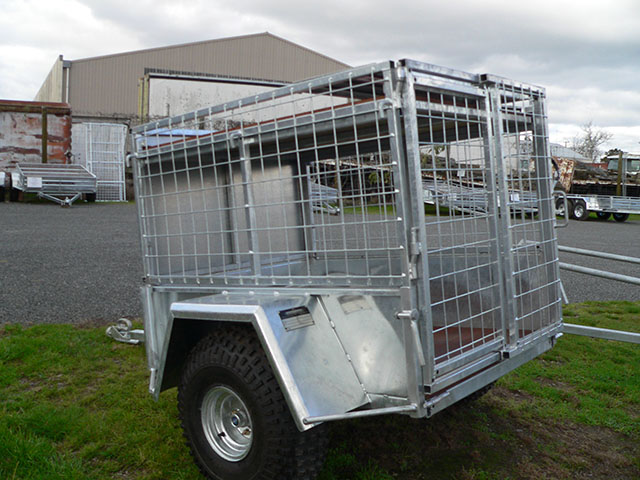

Quad Bike Trailer
This Quad Bike Trailer is built tough for off-road and farm use, with a fully welded RHS galvanised chassis and a 300kg load capacity. It runs on 22/11 8” ATV tyres with galvanised hub-fitting rims and a fixed axle using taper roller bearing hubs and a 3-piece seal. The 12mm H3 NZ-made ply deck is secured with ceramic-coated countersunk screws and surrounded by 300mm high pressed steel sides. It features a removable tailgate, strong double mudguards, a single braced drawbar to the axle, and a built-in shovel holder. The crate is constructed from 25×25 SHS steel with mesh sides and includes a swing/slide rear gate and removable top deck. Crate sections are bolted to reduce rattling.
- Fully welded RHS galvanised chassis (not angle iron)
- Fixed axle with taper roller bearing hubs and 3-piece seal
- 22/11 8” ATV tyres on galvanised hub-fitting rims
- 300kg load capacity / Approx. 50kg tare weight
- 12mm H3 treated NZ-made plywood deck – Fixed with ceramic-coated countersunk screws
- 300mm high pressed steel sides
- Drop-down, removable tailgate with 2 strong hinges
- Double pressed-edge mudguards – strong enough to stand on
- Shovel holder included
- Single braced drawbar to axle for extra strength
- 1 7/8” lever-type coupling
Crate:
- Made from 25 x 25 SHS steel with mesh sides
- Panel front and swing/slide rear gate
- Bolted construction to reduce rattle
- Removable top deck with 12mm H3 treated NZ-made ply
- Crate weight approx. 50kg
Additional information
| Size: | 4'x 3' |
|---|
