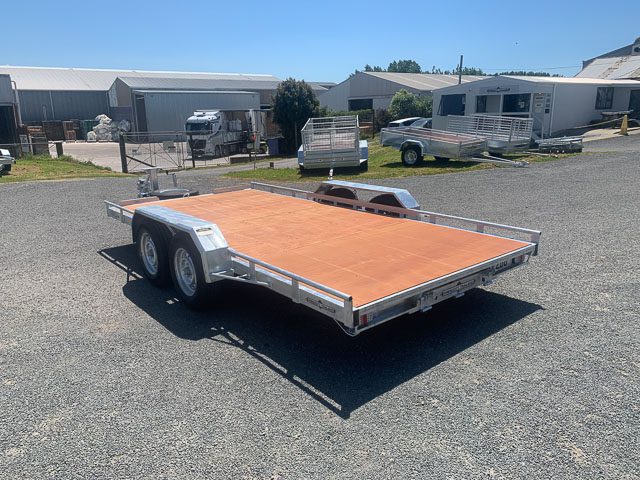

Vehicle Transporter
The Vehicle Transporter trailer is perfect for safely moving cars and machinery, with an 1800kg load capacity and tandem axle oscillating suspension for smooth towing. It has a 4250 x 2490mm deck (2000mm between guards), a fully galvanised chassis, steel chequer plate wheel runners or optional full ply deck, hydraulic disc brakes on the front axle, alloy ramps with underdeck storage, and a manual recovery winch. We can customise sizes to suit your needs.
- Tandem axle with oscillating suspension
- Deck size: 4250mm L x 2490mm W (2000mm between wheel guards)
- Fully galvanised chassis
- 14” steel wheels with 8 ply commercial tyres (spare mounted rear left)
- Steel chequer plate wheel runners (500mm wide) or optional full 22mm ply deck
- Dropped axles for lower height
- LED 12/24V multi-volt lights
- Heavy-duty NZ jockey wheel with alloy centre
- Hydraulic strike over-ride disc brakes to front axle
- Duo-fit coupling (50mm / 1 7/8”)
- Hinging right-hand tandem guard
- Tilting drawbar
- Manual recovery winch (15:1)
- Alloy ramps with underdeck storage (1500mm long, rated 1700kg)
- Custom sizes and setups available
Additional information
| Deck Size | 4.2m x 2m, Custom Size |
|---|---|
| Load capacity | 1800kg |
| GVM | 2500kg |
